Installation for Vehicle

Click Diagrams to Enlarge

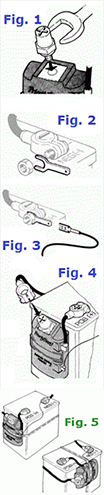

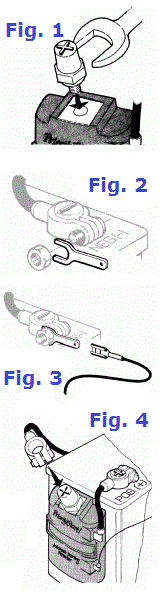

1a. (Top Post Only) Using a 7/8" wrench, tighten post adapter (Item B) firmly into top of PriorityStart! (Fig. 1)

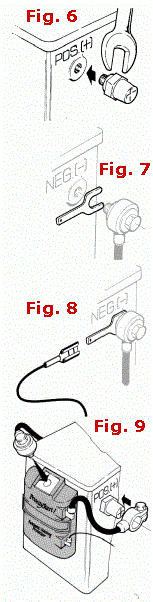

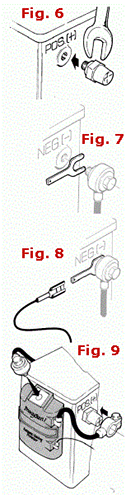

1b. (Side Post Only) Using a 7/8" wrench, take post adapter (Item B) off of PriorityStart! Tighten firmly into positive terminal of battery (Fig. 6)

2. Install band (Item F) around battery

3. Reconnect negative battery cable to negative battery post and install u-clip (Item D) to terminal (Fig. 2 or Fig. 7)

4. Connect PriorityStart! red cable (Item C) to positive post on battery (Fig. 4 or Fig. 9)

5. Connect vehicle positive cable to PriorityStart! (Fig. 4 or Fig. 9)

6. Place PriorityStart! under band (Item F) (Fig. 5)

7. Connect ground wire (Item E) to u-clip (Fig. 3 or Fig. 8)

For installation, please use the actual owner's manual Click Here
